East Fortune Me 163B 191659

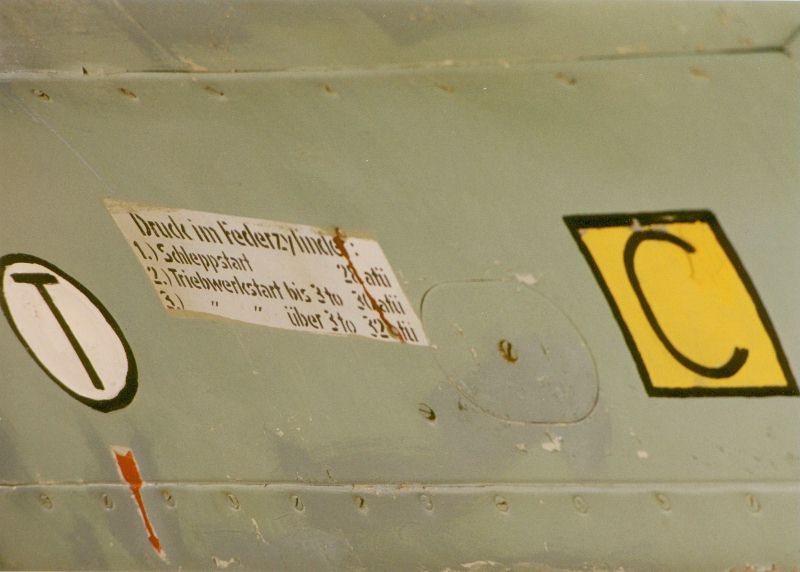

Detail view of the left lower fuselage just behind the skid. It shows large T and C-Stoff markings designating the dumping and overflow exits on the keel of the fuselage. The middle stencil reads:
Druck im Federzylinder:
|
1.) Schleppstart
2.) Triebwerkstart bis 3 to
3.) " " über 3 to
|
28 atü
30 atü
32 atü
|
|
|
Pressure in spring cilinder:
|
1.) Towed take-off
2.) Powered take-off up to 3 tons
3.) " " over 3 tons
|
28 bar
30 bar
32 bar
|
|
Photograph by Dave Brooks, August 1999
