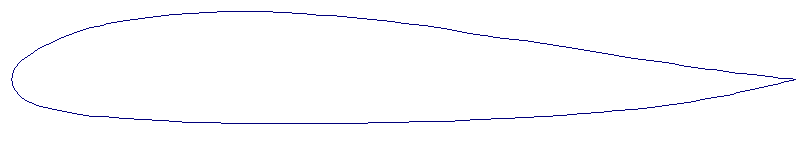

Steve 'Squirrel' is another longtime Komet fan, and he contributed the following data set. They are based on a rough data set from Germany, that Steve further refined with CompuFoil software. The results are shown below. That agree to a very large degree with the measurements from the Messerschmitt drawings.

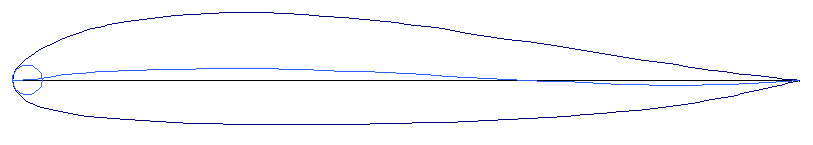

Analysis of the data leads to the following characteristics:
Contour data
(note: the coordinates are not smoothed to achieve mathematically smooth contours, without discontinuous curvatures)
Normalised x-coordinate | Normalised y-coordinate |
1.00000 | 0.00000 |
0.99931 | 0.00007 |
0.99726 | 0.00029 |
0.99384 | 0.00066 |
0.98907 | 0.00118 |
0.98296 | 0.00185 |
0.97553 | 0.00268 |
0.96679 | 0.00366 |
0.95677 | 0.00481 |
0.94550 | 0.00613 |
0.93301 | 0.00763 |
0.91934 | 0.00932 |
0.90451 | 0.01121 |
0.88857 | 0.01336 |
0.87157 | 0.01576 |
0.85355 | 0.01839 |
0.83457 | 0.02123 |
0.81466 | 0.02426 |
0.79389 | 0.02745 |
0.77232 | 0.03091 |
0.75000 | 0.03457 |
0.72700 | 0.03835 |
0.70337 | 0.04213 |
0.67918 | 0.04579 |
0.65451 | 0.04942 |
0.62941 | 0.05306 |
0.60396 | 0.05679 |
0.57822 | 0.06071 |
0.55226 | 0.06481 |
0.52617 | 0.06878 |
0.50000 | 0.07231 |
0.47383 | 0.07532 |
0.44774 | 0.07811 |
0.42178 | 0.08057 |
0.39604 | 0.08257 |
0.37059 | 0.08433 |
0.34549 | 0.08593 |
0.32082 | 0.08708 |
0.29663 | 0.08747 |
0.27300 | 0.08690 |
0.25000 | 0.08579 |
0.22768 | 0.08435 |
0.20611 | 0.08275 |
0.18534 | 0.08066 |
0.16532 | 0.07838 |
0.14640 | 0.07568 |
0.12973 | 0.07297 |
0.11601 | 0.06985 |
0.10062 | 0.06611 |
0.08604 | 0.06171 |
0.07162 | 0.05676 |
0.05811 | 0.05135 |
0.04550 | 0.04550 |
0.03423 | 0.03919 |
0.02387 | 0.03243 |
0.01667 | 0.02703 |
0.01081 | 0.02162 |
0.00616 | 0.01631 |
0.00274 | 0.01016 |
0.00069 | 0.00344 |
0.00000 | 0.00000 |
0.00069 | -0.00321 |
0.00274 | -0.00965 |
0.00616 | -0.01531 |
0.01081 | -0.02040 |
0.01709 | -0.02528 |
0.02476 | -0.02947 |
0.03321 | -0.03294 |
0.04323 | -0.03614 |
0.05450 | -0.03883 |
0.06699 | -0.04132 |
0.08066 | -0.04357 |
0.09549 | -0.04556 |
0.11143 | -0.04726 |
0.12843 | -0.04872 |
0.14645 | -0.05009 |
0.16543 | -0.05160 |
0.18534 | -0.05310 |
0.20611 | -0.05422 |
0.22768 | -0.05505 |
0.25000 | -0.05567 |
0.27300 | -0.05616 |
0.29663 | -0.05648 |
0.32082 | -0.05659 |
0.34549 | -0.05668 |
0.37059 | -0.05673 |
0.39604 | -0.05676 |
0.42178 | -0.05663 |
0.44774 | -0.05623 |
0.47383 | -0.05566 |
0.50000 | -0.05507 |
0.52617 | -0.05445 |
0.55226 | -0.05373 |
0.57822 | -0.05288 |
0.60396 | -0.05189 |
0.62941 | -0.05061 |
0.65451 | -0.04908 |
0.67918 | -0.04741 |
0.70337 | -0.04570 |
0.72700 | -0.04399 |
0.75000 | -0.04222 |
0.77232 | -0.04030 |
0.79389 | -0.03822 |
0.81466 | -0.03589 |
0.83457 | -0.03328 |
0.85355 | -0.03048 |
0.87157 | -0.02759 |
0.88784 | -0.02432 |
0.90451 | -0.02183 |
0.91934 | -0.01881 |
0.93301 | -0.01578 |
0.94550 | -0.01293 |
0.95677 | -0.01036 |
0.96679 | -0.00804 |
0.97553 | -0.00598 |
0.98296 | -0.00419 |
0.98907 | -0.00270 |
0.99384 | -0.00153 |
0.99726 | -0.00068 |
0.99931 | -0.00017 |
1.00000 | 0.00000 |
