Komet weapons: SG500 Jägerfaust

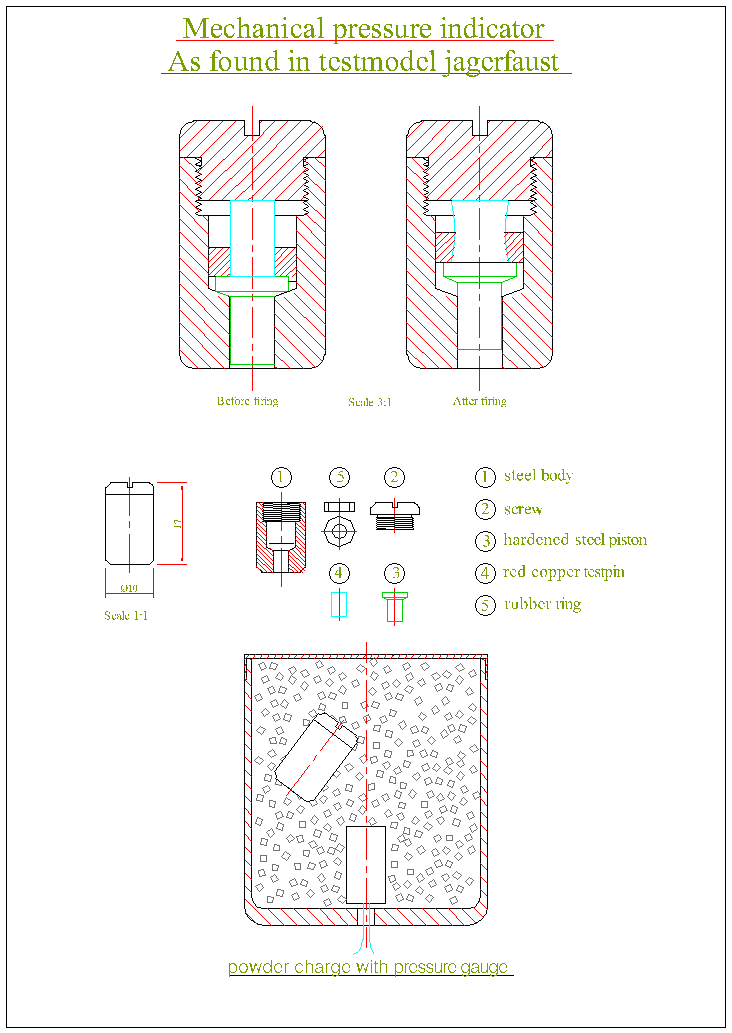

An interesting detail was found in one of the Jägerfaust cartridges. It was a pressure sensor for measuring the cartridge's firing pressure during testing. The pressure is indicated by the deformation of a soft copper pin that is compresed during firing. It remained in the barrell and could be retreived after the test.
