|Having done some research on the F-117 development history, I developed an interest in the proof-of-concept demonstrator, the Have Blue or XST. I knew Pegasus had a model of this aircraft (issued 1992, catalog number 1021), but when I inspected the contents of the box, I decided it was not worth the asking price. Other modelers have described the model as "it's a handful", "certainly not worth the asking price", "awful fit" and "I'm still sanding the fuselage halves to get them to mate well". Later I came across one offered at 60% of the price, and bought it after all. I knew the construction process wouldn't be easy, but that was an underestimation.|
Jay Miller's 'Skunk Works' reports sweep angles of 72.5 and 54 degrees, and the model's leading edge is pretty close, I measured around 72.3 degrees. The length and span data usually reported (47'3" and 22'6") are impossible with this sweep angle, so that's where the mess starts. The model has a span of 96 mm / 22'8", so that's close. Since the span and sweep are correct, the length should be correct too, and I measured 157.5 mm / 37'2" on the left wing tip and 160.5 mm / 37'11" on the right wing tip. Maybe the 47'3" is measured with the air data boom, to confuse people, or the 4 should be a 3, or the published data is disinformation.
'Have Blue and the F-117' by Aronstein and Picciriollo, page 38, mentions 72.5 degrees, 38' length ("w/o noseboom") and 22'6" span. That's at least a data set that makes sense. It also fits the model quite well.
I found that the model had serious errors on the lower rear fuselage. Now I don't want to put the blame on Pegasus too much, because not a single drawing of the aircraft, or even a photo caption, points out the peculiar shape. I haven't checked the upper fuselage shape in detail.
Two versions of the kit exist, that differ in the execution of the lower left wing tip. In the (presumably) first version, the angles of the left lower wing tip were incorrect. This was corrected in the second version. (Information courtesy of Evan 'Horrido')
Have Blue vacform kits were issued by Maintrack in 1/72 and 1/48 under its 'Project-X' label, but I've never seen these. Reported catalog numbers for the 1/72 kit are PX401 and PX018. They are described as having very soft moulding and poor detail. Take your pick! :-)
It was reported from the 2010 Nürnberg Spielwarenmesse that Kopro announced a new Have Blue model, with catalog numbers 73188 and 73199 listed for aircraft number 2 and 1 respectively. See IPMS Germany Nürnberg report and Model Airplane International 2010 release list.
The situation requires some explanation. The original Czech firm Kovozavody Prostejov (often called KP and Kopro) from the city of Prostejov stopped the distribution of their models in 2008. Instead, a new company called Kopro, located in Prague, did the distribution, selling a mix of mostly former Kovozavody Prostejov models mixed with some others (for example the Slovakian MiG-29 with digital camouflage and Spitfire floatplane). In December 2009, Kovozavody Prostejov sold its moulds to Hungary-based KP Models, which now produces 65 kits. Therefore the models can now be found in shops under three names, Kovozavody Prostejov, Kopro and KP Models.
The Kopro company participated on German Nuremberg Toy Fair, and this company announced the Have Blue model kit under Kopro name. A flyer even shows the two Have Blue models. KP Models states that they are not working on a Have Blue model in any scale.
In January 2011, Anigrand issued a resin 1/72 Have Blue model. Hopefully the model will be easier to build than the Pegasus model. In Anigrand tradition, the model appears to be a 'derivative' of another model, and repeats the severely misshapen rear lower fuselage. Comments about the windshield shape were also made.
|I started with something easy, the upper fuselage. Due to the limited-run nature of the model, the plastic surface is not very smooth, and not very flat either. I took care of the model's left-hand side first, using Milliput to fill in shallow dents, and lots of sanding paper. One has to proceed quite carefully here: if you sand too much, the originally straight facet edges become curves.|
|Here's an attempt to show the complex rear fuselage shape. It's the only photo I know that shows the shape, apart from a photo of the wind tunnel model. I am not 100% sure of each panel line, so look up the original photo and draw your own conclusions. The model has a flat rear fuselage, as shown in all published Have Blue drawings. Another mystery to me is what parts make the 'Platypus' flap system. I've read that the model's rear fuselage is also too short.|

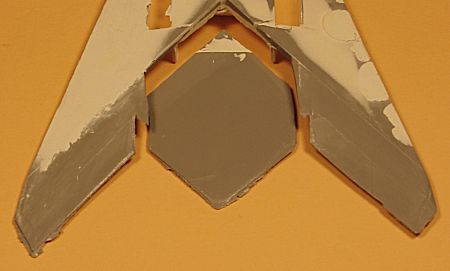

|The lower fuselage consists of two parts, and gluing these together was quite an operation. I first had to sand them flat, to have some idea how to line up the parts. The bond areas were very rough too, and I needed plastic card on one side to fill the gaps. Next step was to engrave the panel line of 'main spar' (not really sure the main spar is positioned there of course). These panel lines will have to be filled if I decide to build the second, RAM-covered prototype, but in the mean time they are handy during the build process. I then added an extra facet on the wings, between the 'main spar' panel line and the leading edge of the elevons. After that, I cut out a fairly large part of the rear side, as shown in the photo. The whole area will need rebuilding. The photo also shows that the wings don't have equal length.|

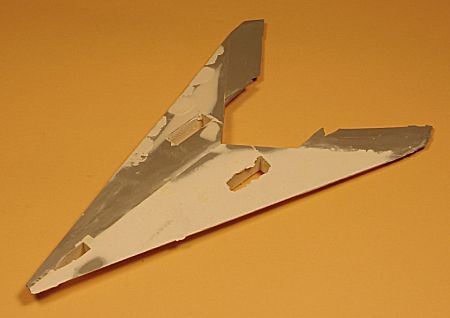

|Another problem of the lower fuselage is that it is not flat at all. The parts are slightly warped (not uncommon with limited run kits), but straightening them with heat seemed impractical. Yet a flat lower fuselage is essential for the fit with the upper fuselage and wings, so I decided to solve the problem. After some messing around, I adapted the following technique. When the model's right lower wing is pushed on a flat surface, it has three contact points: next to the nose landing gear bay, at the wing tip, and roughly in the middle, next to the centerline. I pushed small blobs of Milliput on the wing, wetted them, and rubbed the wing against a flat surface. This spreads the blobs to the exact flat level of the wing, as is visible on the leading edge of the model's left wing. By repeating this four more times, the whole surface was filled to form a flat lower wing surface. Very laborious, but it was the best I could think of. I still have to finish the right wing, where you can see the first blobs of squashed Milliput.|
|I had long planned to use steel wire as leading edges, to create a common reference for the lower and upper fuselage parts. This technique was a break-through for me in this model's construction, after years of dormancy. I started with the long sides of the lower fuselage, using 0.5 mm spring steel wire, glued with CA. I chose 0.5 mm because it has quite a bit of stiffness itself, so it attaches in a straight line. The broken nose was also repaired nicely by adding the wires.
I was so happy with the effect that I decided to employ steel wire on other facet edges too. After scribing a slot with a BMF scriber, I glued a 0.5 mm wire on the centerline, and 0.3 mm wires at the rear of the main facets. It's a bit messy now, but after a few rounds of filling and sanding it will look spick and span. I also need to cut away part of the centerline wire where it crossed the nose gear bay.
|After another layer of paint, the lower side finally looked sharp, after a silly amount of work. I still need to define the wheel wells, and then continue with the facets towards the rear.|
|Next I started fitting the right upper wing half. Fit was horrible, compounded by the Milliput humps that I added to create more stiffness to the lower fuselage. I never did so much motortool sanding and knife scraping on a model, but in the end I was victorious, and the upper wing fitted! I repeated the process on the left side.|
|The next part to fit was the upper fuselage part, that had four faces that connected with the leading edges (see the first photo). This looked like a very difficult fit problem, so I opted to cut away two faces. These faces were in the same plane as the leading upper facet of the wing, so I could reconstruct them. Again it took a lot of sanding and scraping, but I found a fit, and a sigh of relief was heard.
Next I taped all the main parts to the model, and a sigh of disappointment was heard when I noted how rough the model still looked. There are still plenty of gaps to be filled. The position and fit of the vertical tails is still a puzzle, and I have the feeling that they are too small.
|I tried to fit the upper wing panels, but I just could not figure out where to glue them to make a symmetrical model. Not a single measurement agreed on the left and right sides. It drove me nuts, and to the solution of photographing the thing from above for analysis. To ensure a perpendicular view I glued a toothpick on the bottom part.|
It will be a difficult choice between the very nicely camouflaged non-stealthy first proto, and the very boring but stealth second prototype. The great Don Color site has an extensive page on the first prototype, comparing three sets of camouflage colors, and a very brief page on the second prototype. Tony Landis posted interesting new information on the Hyperscale forum early November 2009:
"Unfortunately, there are only two images that have been released of the camo Have Blue. Based on many interviews with the pilots and ground crew members, the first aircraft went through a number of test paint schemes in its short life span including 'dime store black' for its first flight, air superiority blue and various shades of gray along with the well known camo scheme. Just prior to its loss, HB 1 was shipped back to Burbank and went through a complete RCS upgrade in order to test it with full coatings. The aircraft was painted in light/neutral gray overall for those tests. The second aircraft was used for all of the RCS testing and was in the overall gray scheme for all of its flying days."
Ben Rich, in his book 'Skunk Works'(p54), also describes the first prototype as black on its first flight:
"I watch nervously as Have Blue emerges from the guarded cavity inside its hangar and is rolled out. It is a flying black wedge, carved out of flat, two-dimensional angles."
Have Blue colors were also discussed on the ARC forum.
I thought long and hard how to pose my Have Blue, and did not find an answer for a long time. Opening the cockpit disturbes the lines too much, and there's way too little information on cockpit detail. Dropping the flaperons looks just awkward, same goes for the rudders. Which leaves about nothing. Until I considered figures. A test pilot maybe? Or Skunk Works engineers? Then I thought of the Have Blue secrecy being lifted for USAF officers, and something started to click: Skunk works engineers or managers showing their product to a general for the very first time, letting the disbelief sink in. That could work, and would tell a simple but nice story.
I needed a USAF officer figure in dress uniform, and as a basis I used a civilian pilot figure (like the one on the left) from Preiser set 72528. The first round of modifications is shown here. I modified the double-breasted coat to a single-breasted, four-button model like the General John P. McConnell Service Dress Uniform by reducing the overlap and changing the lapels. Next I added four buttons from stretched sprue (inserted in holes and then heat-melted to a ball), pockets from thick aluminum foil with small buttons, and a name tag.
|In a second round of work I replaced all buttons with considerably smaller ones, enlarged the front side of the hat, moved the name tag down, and added epaulettes on the shoulders. A layer of gray paint was required to eliminate the color differences, and see the result. A hand still needs to be added of course.|
|The Lockheed engineers in suits came from Preiser set 72528 (left) and Preiser set 72512 (right). The left one especially has the right body language for the diorama, but I also like that the other one is very different. These figures will require minimal changes only, removal of the suitcase is one.|
|I made a mockup of the base, and posed the under-construction elements on it. I think the body langauge of the figures is quite good: one engineer appears cocky, the other a bit reluctant, and the officer inquisitively walks towards 'the thing'.|
|A close-up of the figures shows how different they are. They are still a bit rough and need further work. But don't forget how small they are, roughly 25 mm / one inch.|
|Unusual for figures, I used enamel paint. I started with a base color for each of them: Revell 56 (RAL 5000) for the officer, Revell 9 anthracit black for the old engineer and Humbrol 40 light grey for the young engineer. I wanted straight-from-the-tin colors so that touch-up later would be easy. Next I used the standard painting method of starting with the skin color, following the method explained in Scale Auto Enthusiast of August 1998.|
|Painting started with a base coat of the overall clothing color. The 'old engineer' got Revell 9 coal black, the officer Revell 56, the younger engineer Humbrol 40. The hi-res scan is brutally honest for these tiny figures, but I'm not going to improve them further.|
|The painting was quite a challenge for me, because I normally airbrush almost everything. Switching from a OOO brush to a needle made things a lot easier. And I came up with the technique of making tine holes for the eyes with a needle, instead of trying to paint a small dot there. I decided to stop torturing myself, and stop here.|
Concluding this page, some links to other Have Blue models:
model under construction via the Wayback Machine. The builder performed some modifications on the rear fuselage shape as far as I can see
finished Have Blue model via the Wayback Machine
SMAKR build review by Johan de Wolf via the Wayback Machine. It involves a rebuild of the rear fuselage
model by Thomas Brückelt on Modellversium
scratch-built 1/48 model by 'X-plane model museum' from Japan in the all-grey camouflage scheme (translation). It's interesting to see 'Habuburu' as the Japanese way of writing 'Have Blue' :-)
Test Pilot Recounts Flying Both Have Blue And Tacit Blue Experimental Stealth Jets with audio-only interview
