TWR-Jaguar XJR-9LM walkaround

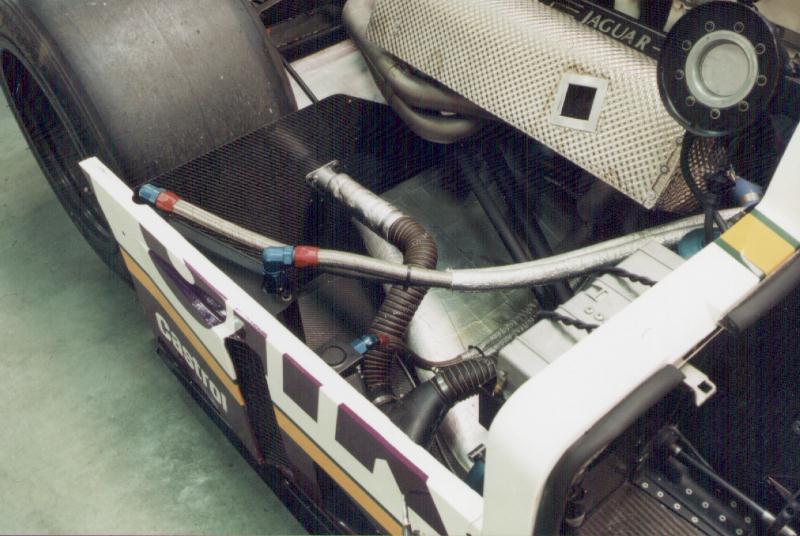

Detail view of the right hand engine bay. Heat-reflecting aluminum foil covers most of the venturi tunnel. The bulkhead in front of the rear tyre is clearly shown. The ducts leading from the NACA inlet on the side panel are also clearly visible. Gear shift linkage can be seen running from the cockpit through the firewall, and then running along the horizontal chassis tube.

Photo by Michel Jamin
