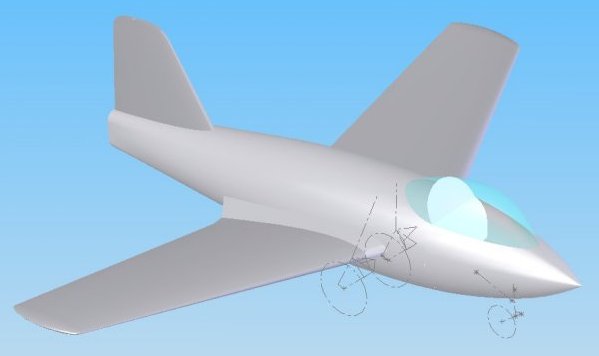

Me 263A 3D CAD model

During the research into the Me 163B at the Imperial War Museum Duford, UK, dimensional drawings where found on the Me 263A. This enabled Stephen Endersby to create a reasonable CAD model. Due to the larger number of Me 263 drawings this model was completed before the Me 163B. As with the Me 163B work the wing data is estimated from various sources.
