Göttingen 765: comparison of attempts

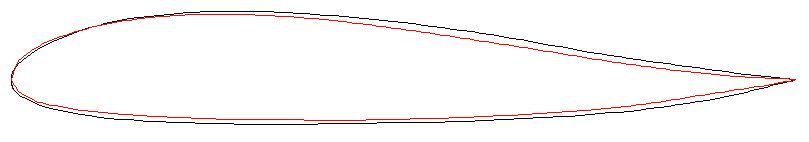

For the moment, the profile derived from the Messerschmitt drawing is used as the baseline profile (in black). The first comparison is with the profile derived from the Späte drawing (in red):

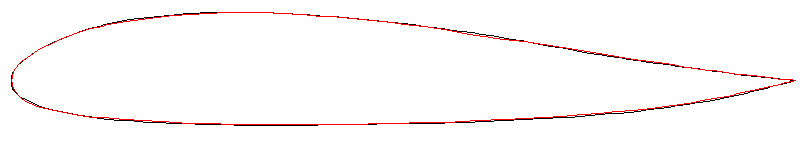

For completeness, the 'Späte' profile is also shown 'blown up' from 13.48% to 14.45% (in red) like the Messerschmitt drawing profile (in black).

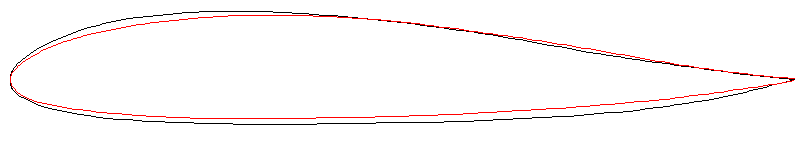

The second comparison is with the profile derived from Cosford photo 1 (in red):

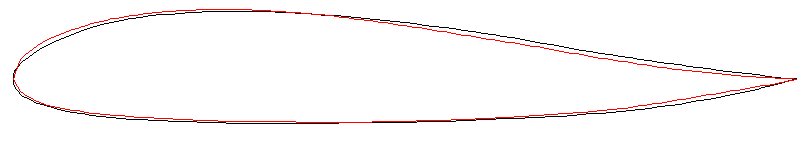

The third comparison is with the profile derived from Cosford photo 2 (in red):

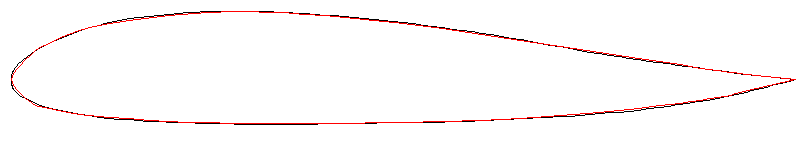

The fourth comparison is with the profile derived from German data (in red). Agreement is the best so far.

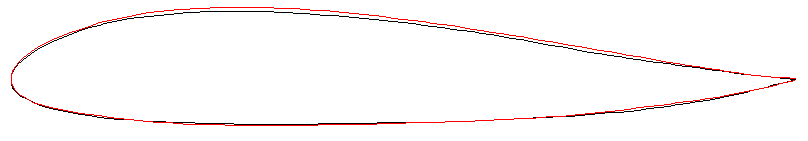

The fifth comparison is with the profile derived from museum measurements data (in red). Agreement is quite good again.
