TWR-Jaguar XJR-9LM walkaround

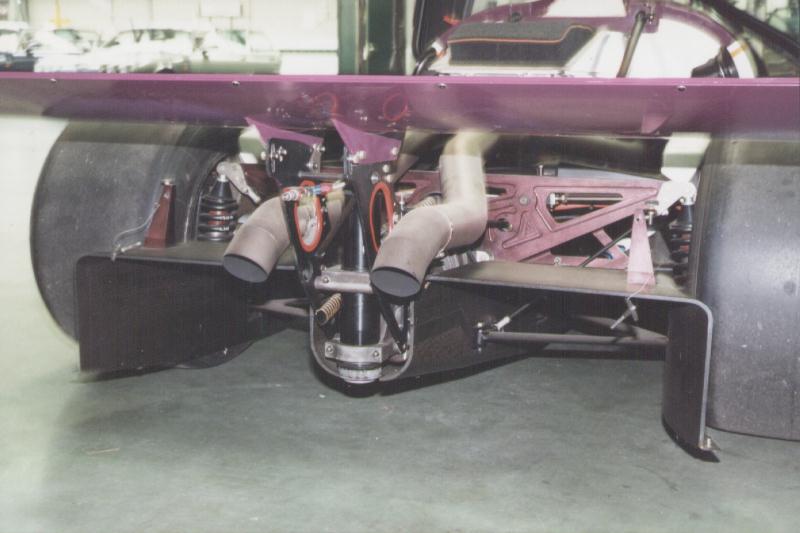

Rear view of the car. Clearly visible are the details of the rear of the venture tunnels, the rear suspension, the rear jack and the wing support. The purple color of the rear suspension beam was caused by purple light reflecting of the rear wing. Interesting technical detail is the rod connecting the rear lower wishbone support with the large machined upper beam. This was added to increase the stiffness of the upper beam.

Photo by Michel Jamin
