TWR-Jaguar XJR-9LM walkaround

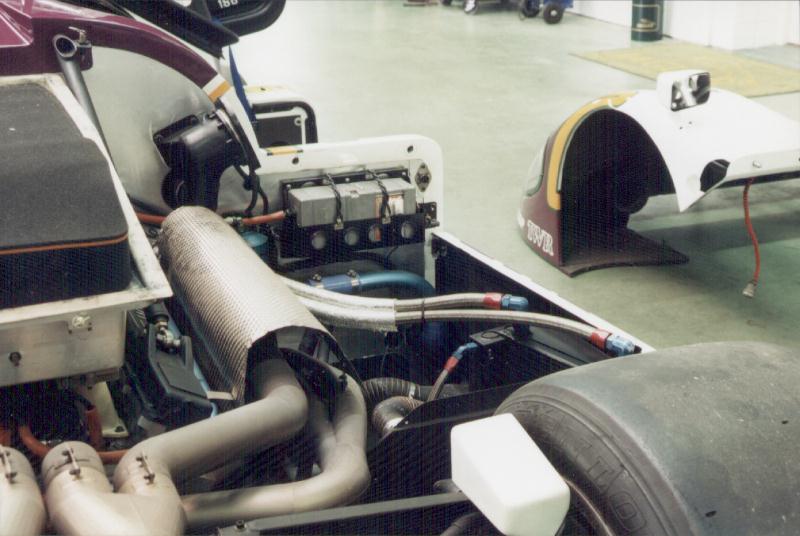

View of the right engine side and body. Note the flexible pipes running to the oil cooler. According to my main reference, this radiator cools transmission oil. The two ducts just ahead of the oil cooler run to the alternator and the bulkhead ahead of the rear tyre. The blue-anodized pipe on the firewall is the coolant pipe running to the radiator in the nose.

Photo by Michel Jamin
